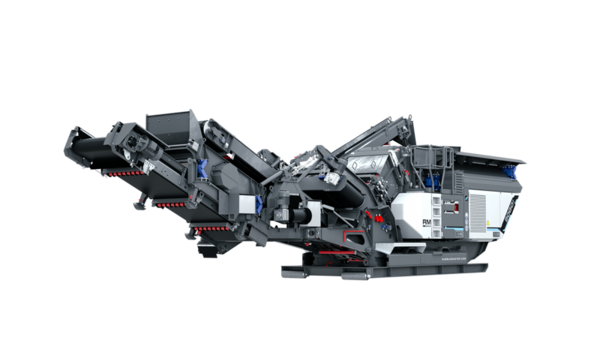

RM 90GO!
Compact Impact Crusher
Meet us at BAUMA 2025 in Munich - Get your tickets now!
Mobility Meets Performance
When crushing on-site, you need mobility and performance. The RM 90GO! is the complete package that allows you to tackle small and large crushing jobs, allowing you to do more work and grow your business faster.
Performance
While many are too small and others too big. The RM 90GO! Compact Impact Crusher is just right.
Ease of Use
A new experience operating a compact impact crusher. Common sense solutions make the hardest parts of crushing easy.
Safety
Build from the ground up with operator safety in mind so you can trust your guys around the machine.
Your Customers will be Impressed,
Your Competitors Jealous.
The RM 90GO! Compact Impact Crusher punches well over its weight class. Thanks to the hydraulic folding conveyors, you can be up and crushing within 15 minutes of showing up on-site.
High-Reduction Ratio
Ideal for base and sub-base material. Adjustable gradation. High-quality cuboid aggregates.
Closed-Circuit Crusher
Crush and screen simultaneously to produce a spec material in a single pass.
Self-Regulating Feeder
Performance peaks can stall a crusher. The self-regulating feeder adjusts the speed so you keep a constant material flow and maximize production.
Strong Performance.
Even with Difficult Materials.
At RUBBLE MASTER, we understand that your materials don't come in convenient sizes and shapes. That's why we build our compact impact crushers with strong components and fail safes, so you can minimize downtime and keep crushing.
Heavy-Duty Belting
Smooth "aggregate" conveyor belts struggle to withstand rough recycling applications. That's why we use a multi-ply chevron RIP-STOP belt, which allows you to keep crushing even when the belt gets punctured.
Smooth Material Flow
Optimized feeder design reduces the risk of overfeeding and blockages. Integrated pre-screen bypasses fines to reduce wear.
RM Release System
Keep crushing longer by resolving blockages with the touch of a button on your radio remote control.
Operate with the Touch of a Button
The operation of a RUBBLE MASTER compact impact crusher is unlike any other crusher. We focus on making machines less complex so that you can start crushing without the lengthy training necessary because we believe everybody should be able to operate a crusher.
Intuitive and Simple
Less training necessary.
Radio Remote Operated
Run the crusher conveniently & safely from the cab.
One-Man-Operation
No need for a large crew.
Closed-circuit
Crush & screen simultaneously to produce a DOT spec material (e.g. ¾“- base material).
Adjustable output size
Easy change of screen media and crusher settings from ½“- to 3“-.
Open-circuit
Screen attachment can be detached hydraulically to produce a non-spec product (e.g. 3" fill).
Maximum throughput.
Minimum wear.
Ideal for an initial reduction in size.
2-way split
Stockpile an additional oversize (clear stone) product.
Hydraulic swivel conveyor
Save Up to 30% on Fuel With our Diesel-Electric Direct Drive
compared to traditional diesel-hydraulic compact impact crushers
Fewer Issues Crushing Asphalt
Our efficient drive train requires less cooling. Thus RUBBLE MASTER, utilizes wide-core-radiators to minimize dust build-up and premature overheating.
Works Well in Extreme Temperatures
No heating up of hydraulics in winter and no overheating in summer.
Cut hydraulic fluid costs
Our small hydraulic system (30 gal) is used for auxiliary functions only.
Say goodbye to bursting hoses, leaks, and DEP / MOE citations.
Direct-driveX
When the manual twin-disc clutch is engaged the rotor is directly driven by the diesel-engine.
GeneratorX
The generator produces the power for running the shaker motors of the feeder and screen attachment as well as the motors for the conveyors.
Small hydraulic pumpX
The crusher doesn't need the hydraulics while in operation. The relatively small hydraulic system is used to operate cylinders during the machine setup and daily maintenance, and for tracking the machine.
Clutch assemblyX
The clutch assembly consists of a manual twin-disc clutch and a hydraulic coupling for a soft start.
Move Anywhere, Anytime
Say goodbye to burdensome permitting, escorts, and long setups. You’ll be finished with the job before your morning coffee cools.
Easy Move
Use the same trailer you use for your excavator.
Fast Setup
From trailer to crushing in 15 minutes without the need of special hand-tools.
Track & Crush
Crushed material must be stockpiled using a loader or conveyor. The RM 90GO! can windrow the material so you can run with minimal support equipment.
Perfect for Any Jobsite
Contractors are facing thinner margins due to smaller jobsites, neighbors’ complaints, and longer trucking times. One versatile RUBBLE MASTER machine can crush any on-site material volume, from just a few hundred tons to very high volumes, virtually putting money back into your pocket.
Surprisingly Quiet Crushing Operation
Small Footprint
Ideal for on-site crushing where there is little room for setting up large crushing spreads.
Low Feed Height
Easy to reach into the hopper with your excavator no matter how big or small your pile is.
Video Gallery
RM 90GO! Specs
| Capacity | up to 200 tph up to 220 TPH |
| Inlet opening | 860 x 650 mm 34" x 25" |
| Ideal feed size | 500 mm 20 " |
| Crusher unit | 4-bar rotor 4-bar rotor |
| Feed unit | 2.6 m³ 3.4 yd³ |
| Prescreen Grizzly (standard) | 1,050 x 800 41" x 31½" |
| Engine | 194 kW 260 HP |
| Drive | diesel-electric diesel-electric |
| Screen-box | 1,100 x 2,300 mm 4 x 8 ft |
| Transport dimension | 13,470 x 2,550 x 3,050 mm 44'2" x 8'5" x 10' |
| Weight | 28,400 kg 62,500 lbs |
Full Electric Option

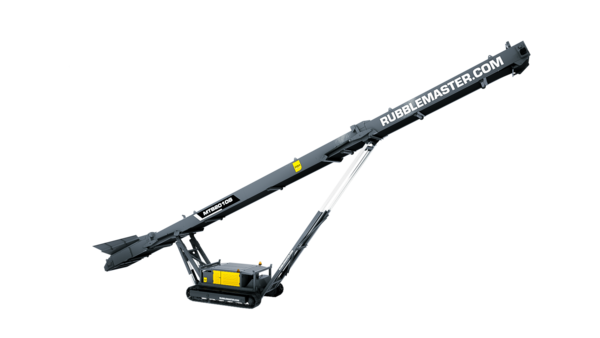

50' Tracked Conveyor
Operating a RUBBLE MASTER
is just…awesome.
Don’t just take our word for it.
"What's unique about Gerald Hanisch [founder of RM Group] and RUBBLE MASTER is that they are always listening and looking for any possible improvements for the equipment."
Dave Schielein
Ironhustler Excavating
United States
Talk to an Expert
Have a question? Fill out the form, and a material processing expert will be in touch with you as soon as possible.
