Closed-Circuit Production

The screen attachment makes your RUBBLE MASTER a closed-circuit crushing plant. It includes a single-deck screen and return conveyor to recirculate oversized material back into the hopper and produce a defined material in a single pass.

Maximum versatility

Produce More Finished Products

One-man operation

Enjoy More Self-Sufficiency

Simple & fast settings

Adjust Quickly to Changing Job-Requirements

Maximum versatility

Without the ability to produce more finished products you are held back from growing your business.


At RUBBLE MASTER we understand, that if you can't use your product you haven't achieved anything. That's why our closed-circuit impact crushers come with a versatile screen-attachment and return conveyor to maximize the application range and accelerate the return on your investment.

Produce More Finished Products
RM 90GO! compact impact crusher - open circuit

Open-Circuit Crushing

The screen attachment and return conveyor can be easily detached to produce a non-spec material for sub-base or fill.

Maximize production. Minimize wear.

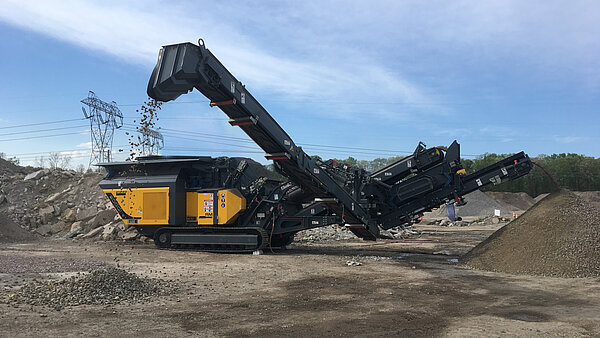

RM 90GO! Compact Impact Crusher - closed circuit

Closed-Circuit Crushing

The return conveyor recirculated the material back into the hopper.

Spec material in a single pass

open-circuit configuration

2-Way Split

The return conveyor swivels 90° so you can stockpile oversized material.



Maximize production. Minimize wear.


Say Yes to More Jobs

One Operator Can Manage Everything… Easy & Fast.

The most operator-friendly suite of onboard screen-attachment imaginable.

Easy to detach screen-box attachment

Easy Switch from Open- to Closed-Circuit Crushing

When producing non-spec products, screening slows you down and increases wear. The screen-box and return conveyor assembly can be detached from the machine easily and quickly, so that you maximize production and profits.

Easy Access to the Screen Deck

Contaminants and wet material may clog your screen openings. The main discharge conveyor folds back hydraulically, so you can clean your screens easily and keep production high.

Screen media

Easy Change of Screen Media

Screen media is bulky and difficult to handle. The screen-attachment lowers to the ground hydraulically, so that you can change screens with your feet on the ground.

Reversible Cross-Conveyor


Uncrushable materials (e.g. fabrics, plastics, roots, aso) run in endless circles. When mobilizing the machine, do you want to free it from material? The cross conveyor can be reversed easily to discharge material to the side.



Produce a Cleaner End-Product with the Optional Wind-Sifter


Segregate lightweight contaminants (such as roots, fabrics, and plastics) to produce a cleaner end product and reduce screen clogging. Without the wind-sifter, contaminants run in endless circles and may end up in your finished product. Produce aggregates that people wait in line to buy.



Closed-Circuit Impact Crushers Compare Models

Capacity
Inlet opening
Screen-box
Transport dimension
Weight
RM 120X Mobile Impactor RM 120X
Impact Crusher
up to 350 tph up to 385 TPH
1,160 x 820 mm 46" x 32"
1,480 x 3,708 mm 5 x 12 ft
16,180 x 2,990 x 3,600 mm 52‘10” x 9‘11” x 10‘6“
44,000 kg 95,000 lbs
learn more
RM 100GO! Tracked Impact Crusher RM 100GO!
Impact Crusher
up to 250 tph up to 275 TPH
950 x 700 mm 37" x 28"
1,300 x 3,000 mm 4 x 10 ft
14,700 x 2,860 x 3,155 mm 48'3" x 9'5" x 10'5"
33,600 kg 74,500 lbs
learn more
RM 90GO! Compact Crusher RM 90GO!
Impact Crusher
up to 200 tph up to 220 TPH
860 x 650 mm 34" x 25"
1,100 x 2,300 mm 4 x 8 ft
13,470 x 2,550 x 3,050 mm 44'2" x 8'5" x 10'
28,400 kg 62,500 lbs
learn more
RM 70GO! Compact Crusher RM 70GO! 2.0
Impact Crusher
up to 150 tph up to 165 TPH
760 x 600 mm 30" x 23"
2,100 x 1,055 mm 3.5 x 7 ft
13,300 x 2,360 x 3,100 43'8" x 7'9" x 10'2"
24,200 kg 53,400 lbs
learn more
RM V550GO! Hard Rock Crusher RM V550GO!
Impact Crusher
up to 200 tph up to 200 TPH
950 X 480 mm 3 x 1.5 ft
11,500 x 2,500 x 3,170 mm 37'9" x 8'3" x 10'5"
33,000 kg 75,000 lbs
learn more

Work with Us

Since 1991, RUBBLE MASTER has brought numerous innovations to the market. We’re crushing & screening experts and work closely with contractors and aggregate producers world-wide.
