RM 120X
Mobile Impactor
Crush Different To Dominate Serious Projects
Efficiency and the lowest cost per ton is the aim of the game. RUBBLE MASTER understands that when your machine is down, your crew is down, and you are bleeding money. That’s why we provide operators with more feedback to improve their crushing, foresee issues, and minimize downtime.
More Performance Enhancing Options
for a smooth material flow and improved operating costs.
A New Operating Experience
Refined controls via new 12.5" touchscreen control panel. Troubleshoot faster and with confidence to produce more material.
Improved Safety
by keeping people from entering the danger zone and climbing the machine.

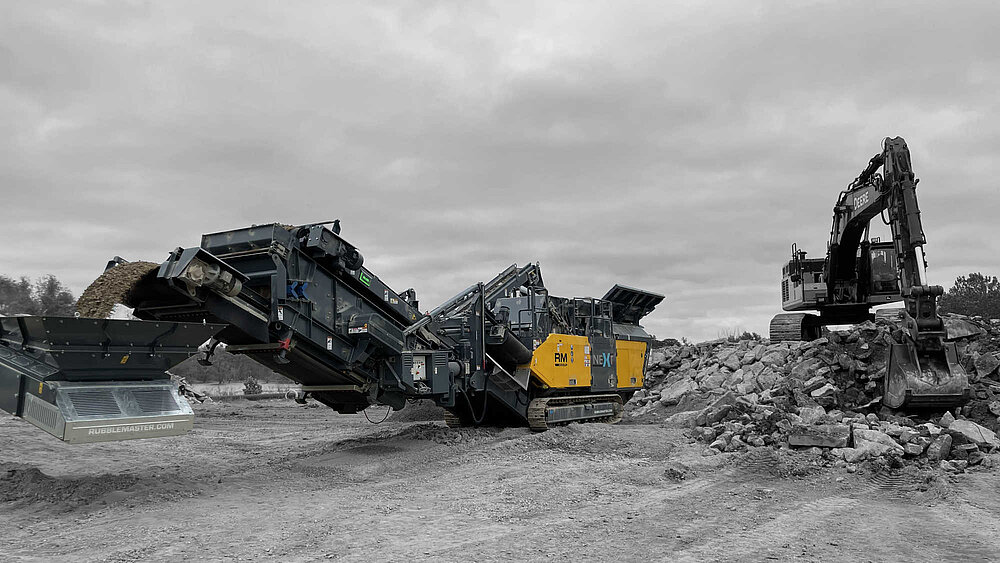

Our biggest mobile impactor designed for those who must keep crushing
The RM 120X impactor delivres a high reduction ratio while being easy to maintain. The 4-bar rotor is driven directly through a 400 HP John Deere diesel engine and can be used in primary and secondary crushing applications. The crusher box features a 3-stage single-apron impact wall for fast and easy adjustment of your closed side setting.
You deserve not only great mobile impactor but also the industry's best support.
The RM 120X mobile impactor comes standard with a 5 year / 5,000 hours limited warranty on all structural main components. Contact your dealer for details.
Assymetric hopper
Single piece feed hopper. The assymetric design reduces bridging and keeps you crushing. Adjustable feed-speed.
Pre-screen grizzly
Standard option to bypass fines or discharge fines through an optional side discharge conveyor.
Assymetric hopper
Single piece feed hopper. The assymetric design reduces bridging and keeps you crushing. Adjustable feed-speed.
Patented RM Active Grid
The RM Active Grid is an aggressive self-cleaning pre-screen to bypass fines to the main conveyor or to discharge an non-spec material on the side through an optional side-discharge conveyor.
25% More Hopper Capacity
Hopper wing plates increase hopper capacity to facilitate feeding with large buckets.
RM Active Pre-Screen
The RM Active Pre-Screen is an independently driven aggressive pre-screen to bypass fines to the main conveyor or to discharge a spec material on the side through an optional side-discharge conveyor.
The RM Release System helps to remove blockages and keeps your crushing
By the press of a button on your radio remote control the release system is activated. The apron is pushed back so that the material can clear the inlet and you keep crushing without leaving your cab.
Built With Operators, For Operators
The RM 120X advanced safety and convenience features are designed to assist you with the most burdensome parts of crushing.
Total Crusher Control
All functions are on your radio remote control.
Operator Assistance
Instant visual response on crushing performance, automated feed control and emergency machine shutoffs.
Easy Troubleshooting
Fault codes with easy to understand on-board resolutions.
Performance IndicatorX
Overfeeding or underfeeding your crusher slows you down. The Performance Indicator visualizes the utilization of the machine and helps operators find the sweet spot of the machine so that they can maximize production and improve their feeding skills.
Track & CrushX
If you don't have a conveyor and wheel loader on-site you are in a pinch. RUBBLE MASTER mobile impactors can be moved while crushing so that you can windrow your material and keep crushing.
Status LightingX
Status lights show the condition of the machine.
- Green - in operation / ready to crush
- Yellow - not ready to be fed or the machine is being moved
- Red - not ready because there is an issue
Load dependent feed speedX
The RM 120X mobile impactor regulated the feed speed according to the crusher load to maximize production and reduce the risk of stalling your crusher.
Your safety is important to us. This is why we keep your feet on the ground.
Climbing ladders with power tools and heavy wear parts is a safety hazard. All RUBBLE MASTER mobile impactors are fully ground serviceable which makes light & safe work out of your dailies. Plus, you can trust your guys around the machine.
5' x 12' Single Deck Screen
The RM 120X Mobile Impactor comes with a large 2 section 5' x 12' screen attachment for a closed circuit production. Standard is also a spreader plate to distribute material evenly across the screen.
Operating Position
Closed-circuit setup to crush & screen in a single pass.
Hydraulic folding and swiviling return conveyor reduces your setup time and labor costs.
Transport Position
Return conveyor is folded for transport. Optional hopper wing plates are broken down for transport.
Hydraulic folding and swiviling return conveyor reduces your setup time and labor costs.
Service Position
The screen attachment and return conveyor can be lowered to the ground for changing screen media or to dedatch the screen from the crusher.
Hydraulic folding and swiviling return conveyor reduces your setup time and labor costs.
Make more money per produced ton with diesel-electric mobile impactors
RUBBLE MASTER has been utilizing diesel-electric drives for its mobile crushers since our beginning in 1991. This well-proven system offers many benefits over conventional diesel-hydraulic drives - most notably its significant lower fuel consumption and surprisingly low noise emissions.
Save Up to 30% in Fuel
Our diesel-electric direct drive burns less fuel compared to traditional diesel-hydraulic tracked impactors.
Works Well in Extreme Temperatures
No heating up of hydraulics in winter and no overheating in summer.
Save big on hydraulic fluids
Our small hydraulic system is used for auxiliary functions only. Say goodbye to bursting hoses, leaks, and DEP citations.
Go Anywhere, Anytime
Experience the freedom of folding up your machine and going anywhere you want. The RM 120X, like all RUBBLE MASTER mobile impactors, was designed with mobility in mind making it easy to move.
Precision Movements
The refined controls allow for exact maneouvers on the job and while loading.
15 Minutes From Trailer to Crushing
A single operator can get the crusher ready without the need of special hand tools.
Single move
Unlike other mobile impactors in this class, the RM 120X can be moved with the screen attached, saving valuable setup and breakdown time.
Video Gallery
RM 120X Specs
| Capacity | 350 tph 385 TPH |
| Inlet opening | 1,160 x 820 mm 46" x 32" |
| Ideal feed size | 660 mm 26 " |
| Crusher unit | 4-bar rotor 4-bar rotor |
| Feed unit | 4 m³ 5.2 yd³ |
| Feed unit (extended) | 5 m³ 6.5 yd³ |
| Prescreen Grizzly (standard) | 1,560 x 910 mm 5.3 x 3 ft |
| Active Prescreen (optional) | 2,000 x 1,050 mm 6.5 x 3.5 ft |
| Screen-box | 1,480 x 3,708 mm 5 x 12 ft |
| Engine | 298 kW 400 HP |
| Drive | diesel-electric diesel-electric |
| Transport dimension | 16,180 x 2,990 x 3,600 mm 52‘10” x 9‘11” x 10‘6“ |
| Weight | 44,000 kg 95,000 lbs |
Dust suppression system
Engine compartment light
Hammer changing device
Hydraulic folding conveyors
Magnet
Radio remote control
RM Release System
Continuous Track & Crush
5 Year Limited Warranty
Closed-circuit crusher
RM XSMART Telementry
|
Operating a RUBBLE MASTER
is just…awesome.
Don’t just take our word for it.
"One thing that's impressive. You call any of these guys. They always pick up the phone. They might not have an answer but you get an anwer within hours and not days."
Nathan Henrich, Flatrate Inc.
"If we couldn't crush this material on-site, this job alone would've created over 300,000 tons of excess material "
Eric Bruno, Midwest Crushing and Recycling
